Small Size UHF RFID Integrated Reader QW-107
Description
Small Size UHF RFID Integrated Reader QW-107
Product introduction:
QW-107 UHF RFID integrated reader is designed with a low-power and cost-effective reader-writer module, which is characterized by long reading distance, fast recognition speed, multiple types of interfaces and convenient installation. It can be widely used in logistics tracking, commodity inventory, goods sorting, vehicle management, personnel management, asset management, medical system, cold chain management, temperature monitoring, power monitoring, anti-counterfeiting system and production process control.
Product Features:
Close-range integrated reader-writer based on low power consumption and high performance-price ratio Operating frequency 840~868MHz/902~928MHz (can be adjusted according to the requirements of different countries or regions) Support the electronic label conforming to the EPC Global UHF Class 1 Gen2/ISO 18000-6C standard Optimized multi-label inventory algorithm, with the inventory speed of more than 100 labels/second Working in the mode of wide-spectrum frequency hopping (FHSS) or fixed frequency transmission RF output power up to 26dBm (1dBm step adjustable) Support RS232 serial port, RS485 serial port and RJ45 network port communication Support Wigan data communication Integrated design without external antenna Provide demo software and SDK development kit
Product parameters:
| Physical parameters | |

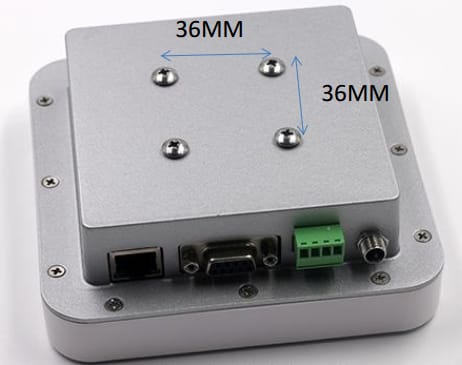

| Overall dimension | 129*129*49mm |
| Weight | 460g |
| Color | White |
| Housing material | aluminium alloy/ABS |
| Environmental parameters | |
| Working temperature | -20℃ to +60℃ |
| Working humidity | 5% ~ 95%（without condensation） |
| Storage temperature | -40℃ to +80℃ |
| Performance parameter | |
| Antenna specification | Built-in 5dbi circular polarized antenna |
| Protocol | ISO18000-6C |
| Working Frequency | 902 – 928MHz or 865 – 868MHz (can be adjusted according to the requirements） |
| Working Mode | FHSS or Fixed Frequency Transmission |
| Output Power | 26dBm±1dBm（MAX） |
| Read Distance | ＞ 3m (related to label and environment) |
| Read Distance | >15m( Based on tag and antenna ) |
| Operating Voltage | DC 12V |
| Normal current | <50mA/DC12V |
| Maximum current | <200mA/DC12V |
| Buzzer | support |
| Communication | RJ45、RS232、RS485、Wiegand 26 |
| Development | |
| SDK | Provide SDK kit to support secondary development. |
