Description

9 dbi RFID Antenna QW-A260

Product features:

Electrical performance: The general-purpose antenna suitable for UHF band RFID applications has the characteristics of
high gain, low standing wave, etc. It has the dual advantages of the far-distance reading distance of the linearly
polarized antenna and the non-directionality of the circularly polarized antenna.

Mechanical properties: Beautiful and compact appearance, waterproof design with waterproof ring and silicone, shell
with reinforced design, suitable for all kinds of harsh environments.

Application

The QW-A258 can be easily used in RFID applications such as access control, warehousing, logistics, and retail in the
UHF band.

Performance

Frequency： 902MHz～928MHz
Voltage standing wave ratio：≤1.3:1
Gain： > 9dBi
H side HPBW： 70°
E side HPBW： 70°
Polarization：
Relative humidity： 5%～95%
input resistance：50 Ω
Connector type：N-50KFD

Specification

Size： 258mm×258mm×36mm
weight： 0.91kg
Material： ABS
Color： white
IP Grade： IP67
Operating temperature：-40°C~+ 85°C
stored temperature：-40°C~+ 85°C

Install

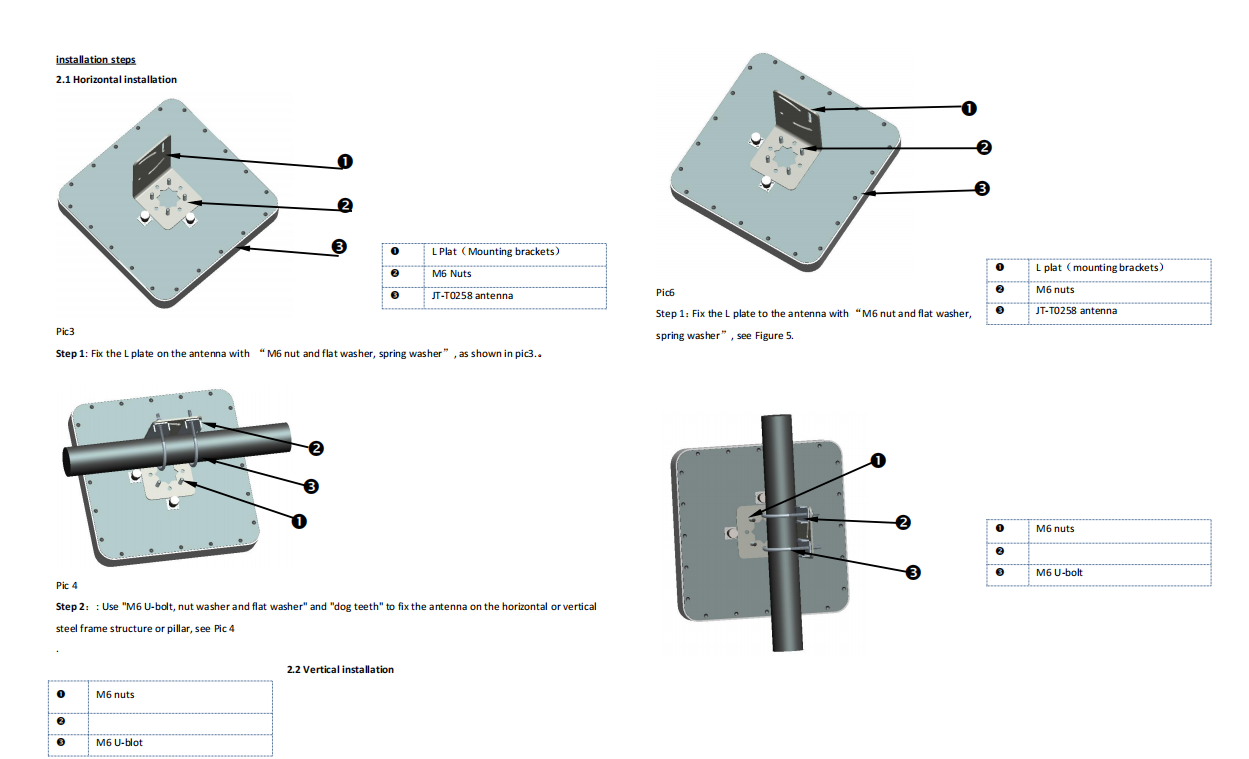

The QW-A258 can be mounted on the steel frame structure or pillar by its own bracket or user-fitted bracket, and
connected to the reader through the coaxial cable. The antenna can be installed horizontally or vertically, depending
on the mounting orientation of the bracket. After installation, the tilt angle of the antenna can be adjusted according
to the actual situation.

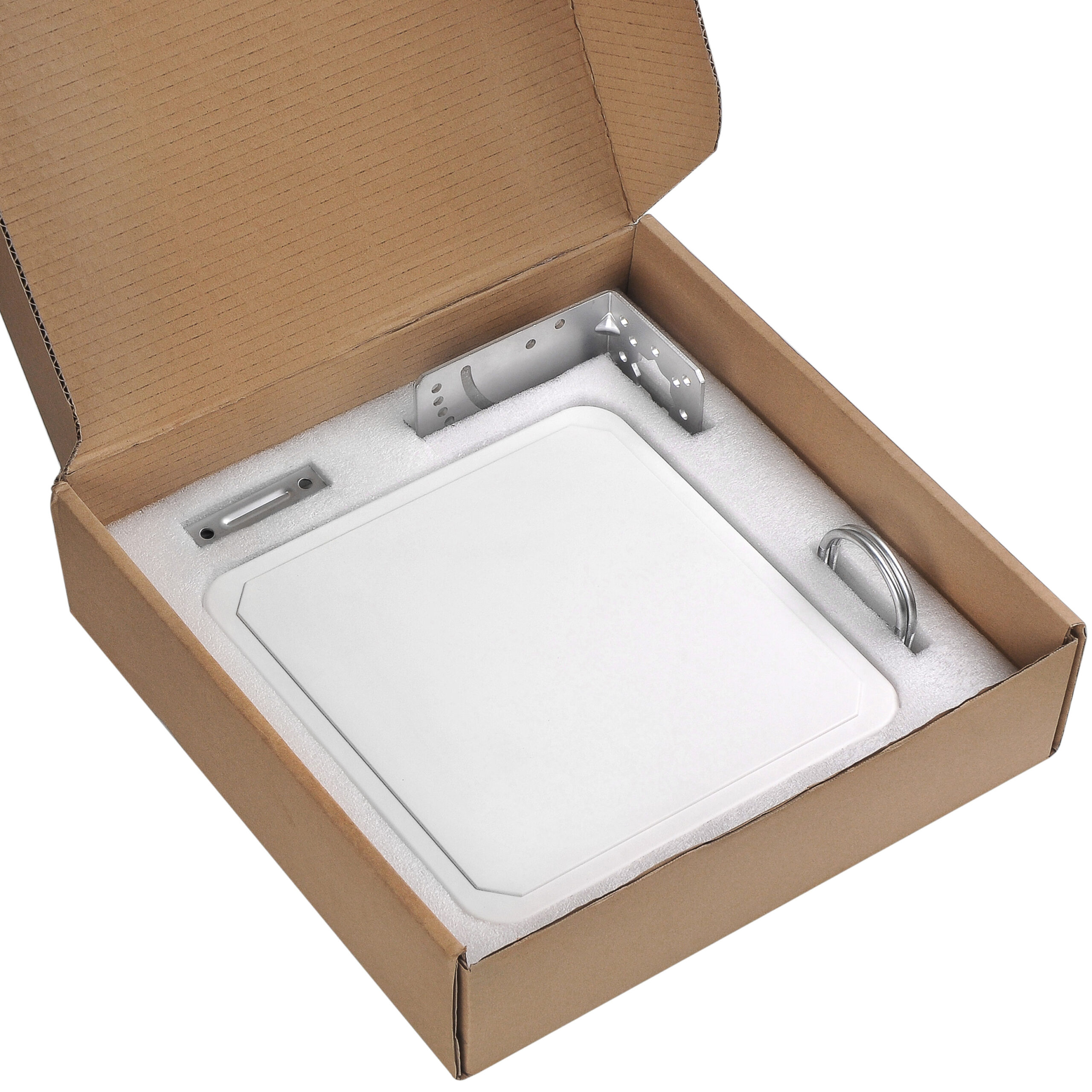

The antenna mount is an option and the customer can choose as needed.

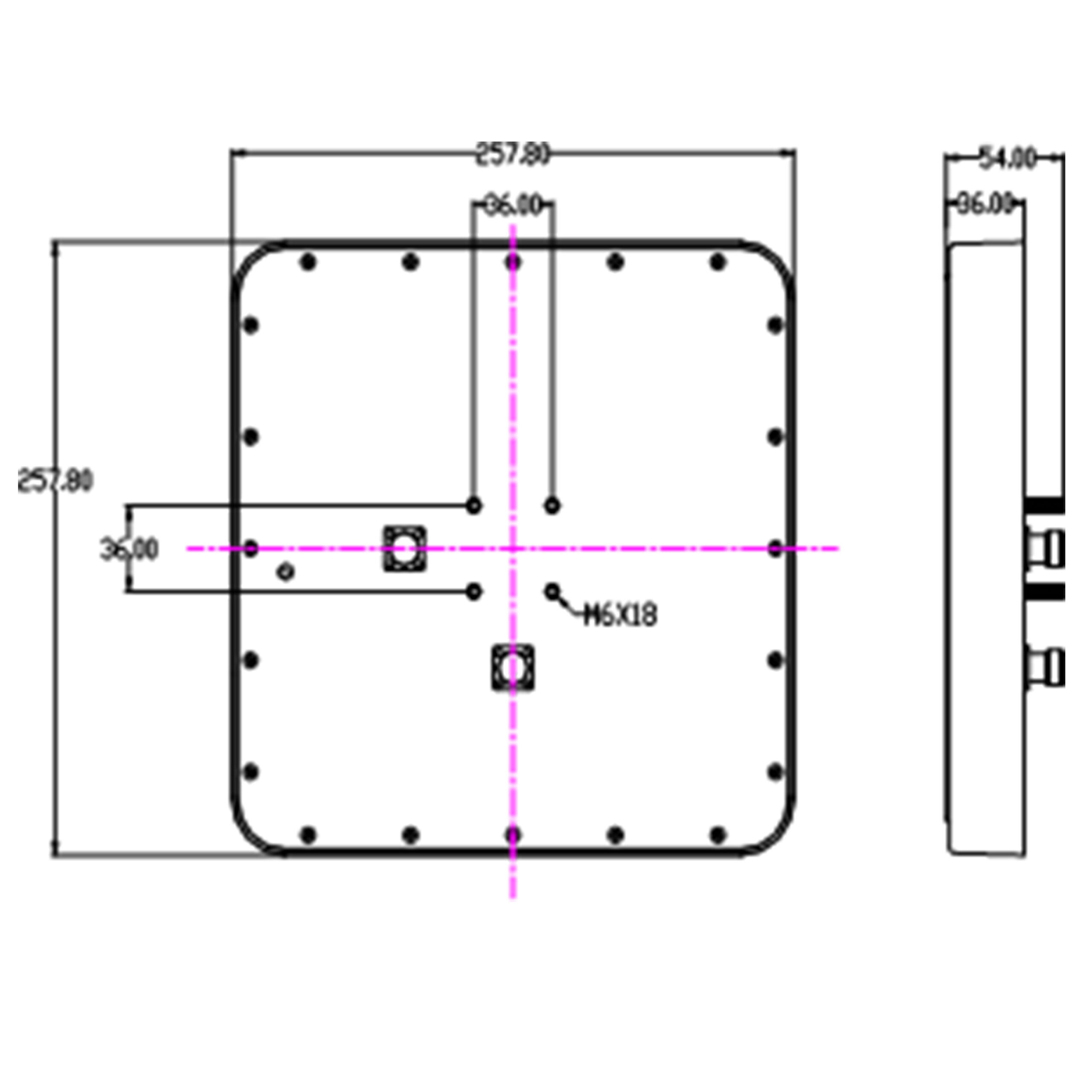

Size
