2.4Ghz wristband Tag QW-T11
Description

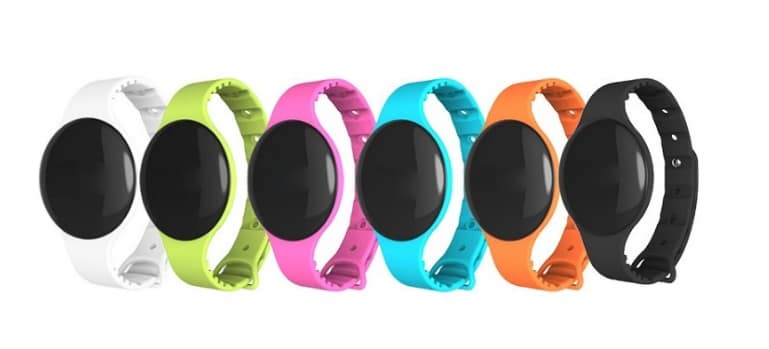

2.4Ghz wristband Tag QW-T11
Product Introduction：
2.4GHz wristband tag QW-T11, with ultra-low power consumption design, longer tag life; Effective visual recognition distance of more than 200 meters; The structure is simple, small and lightweight, and can be fixed by screws, magnets, adhesive and other ways; Frequency hopping working mode, strong anti-collision and anti-interference ability. It can be widely used in application scenarios such as personnel management, personnel attendance, medical care management, and prisoner management.
Product Feature：
- Ultra-low power consumption design, longer service life;
- Effective visual recognition distance of more than 200 meters;
- Frequency hopping working mode, stronger anti-collision and anti-interference ability;
- Simple appearance, rich texture, comfortable to wear;
- Waterproof for everyday life
Product Parameters：
| RF parameters | Working Frequency | 2.4GHz～2.5GHz | Electrical parameters | Battery type | CR2450 |
| Modulation | GFSK | Quiescent current | <1uA | ||
| Communication Rate | 1Mbits/S | Transmit current | <20mA | ||
| Transmit power | 0~7dBm | service life | 3 year | ||
| Read Distance | 50-200 m | LF Frequency | 125K、NFC 13.56MHz（optional） | ||
| Environment Parameters | Working Temp | – 20℃ to +60℃ | Physical parameters | Size (L*W*H) | 38*11*240mm |
| Storage
Temp |
– 40℃ to +80℃ | Weight | 9g | ||
| Operating humidity | 5% ~ 95%
(No condensation) |
Material | ABS/Silicone | ||
| IP Grade | Waterproof for everyday life | Color | Black/Green/White/Blue/pink/Black/Orange |
