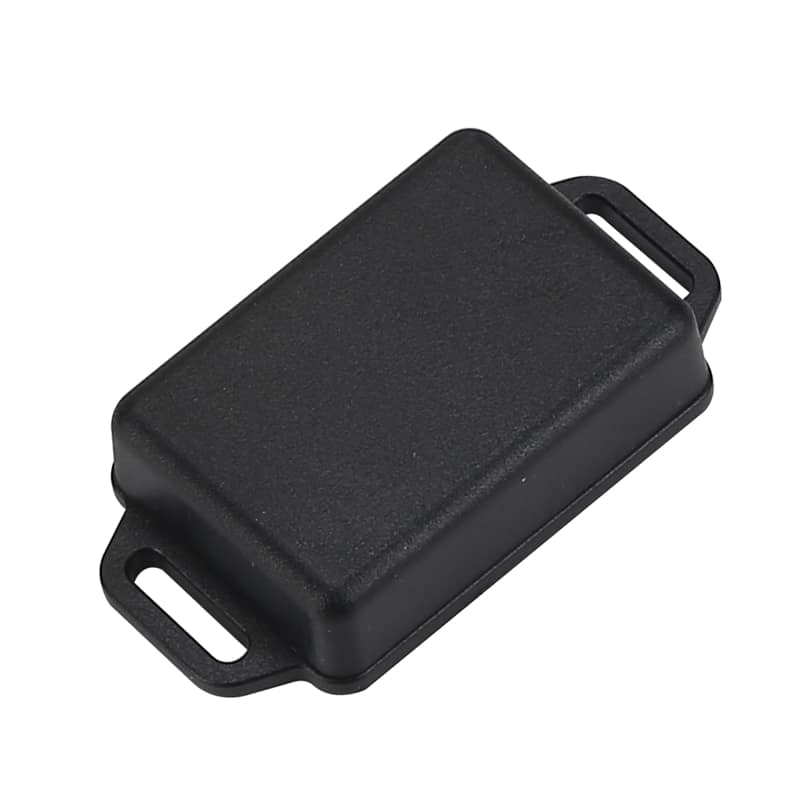

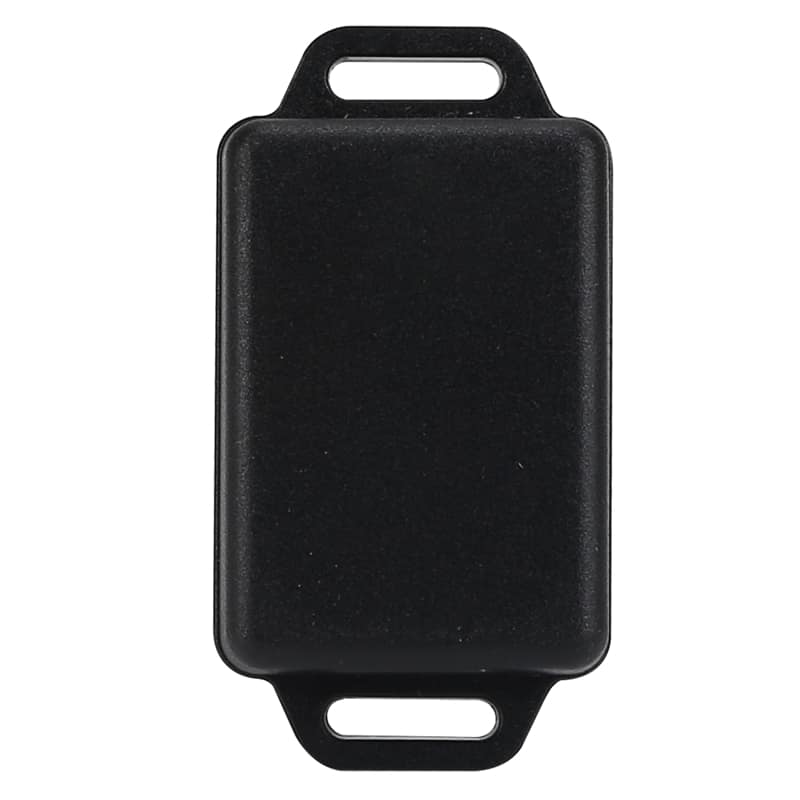

2.4Ghz RFID Trigger Tag QW-T02
Description
2.4Ghz RFID Trigger Tag QW-T02
Product Introduction:
2.4GHz trigger tag QW-T02, microwave frequency 2.45GHz, low frequency frequency 125KHz, low power consumption design, longer life; 2.4GHz effective visual recognition distance of more than 200 meters; 125KHz trigger distance 1~5 meters (trigger adjustment); Frequency hopping working mode, strong anti-collision and anti-interference ability. It can be widely used in integrated application scenarios such as enterprise fixed asset management, parking lot management, fire management, warehouse management, and personnel management.
Product Feature:
- Ultra-low power consumption design, longer service life;
- 2.4GHz effective visual recognition distance of more than 200 meters;
- Frequency hopping working mode, stronger anti-collision and anti-interference ability;
- 125KHz trigger distance 1~5 meters (trigger adjustment);
- Compact and lightweight, easy to install, replaceable battery
Product Parameters:
| RF parameters | Working Frequency | 2.4GHz～2.5GHz | Electrical parameters | Battery type | CR3032 |
| Transmit power | 0~7dBm | Quiescent current | <2uA | ||
| Read Distance | ＞200 m | Transmit current | <30mA | ||
| Trigger frequency | 125KHz | service life | 1~3 year | ||
| Triger Distance | 1~5 m | Battery replacement | Replaceable | ||
| Environment Parameters | Working Temp | – 20℃ to +60℃ | Physical parameters | Size (L*W*H) | 67*36*16mm |
| Storage
Temp |
– 40℃ to +80℃ | Weight | 25g | ||
| Operating humidity | 5% ~ 95%
(No condensation) |
Material | ABS | ||
| IP Grade | IP54 | Color | Black/White |
