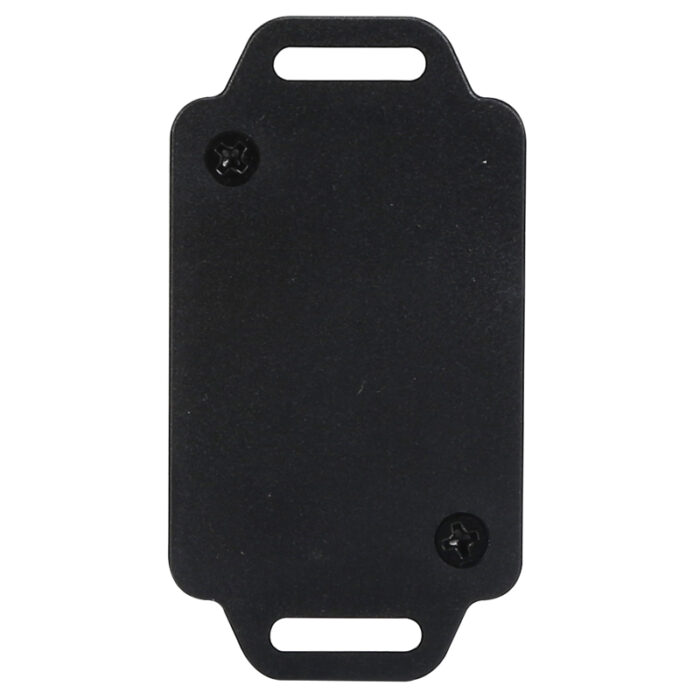

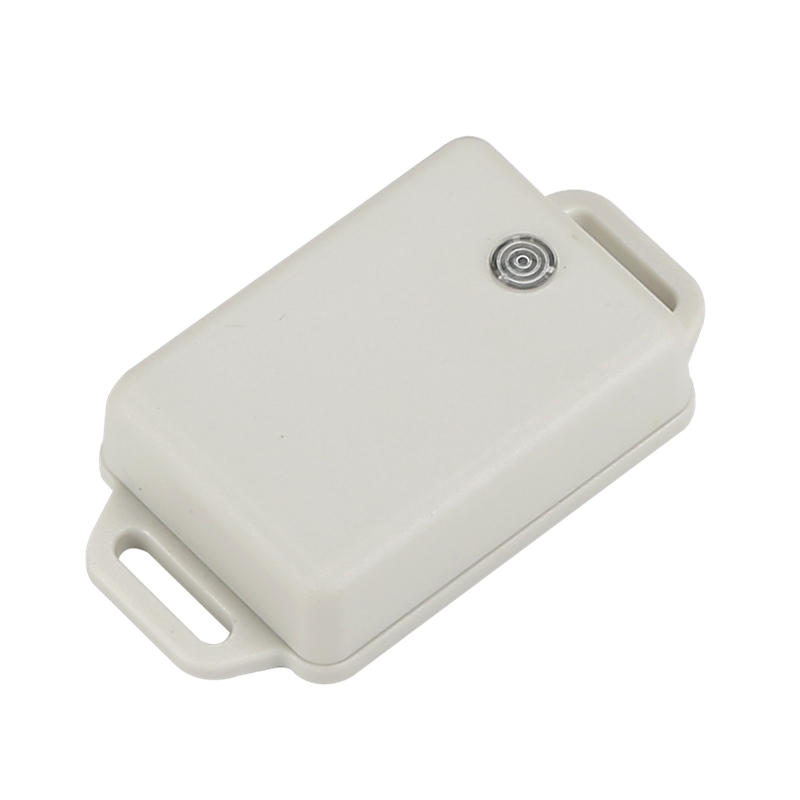

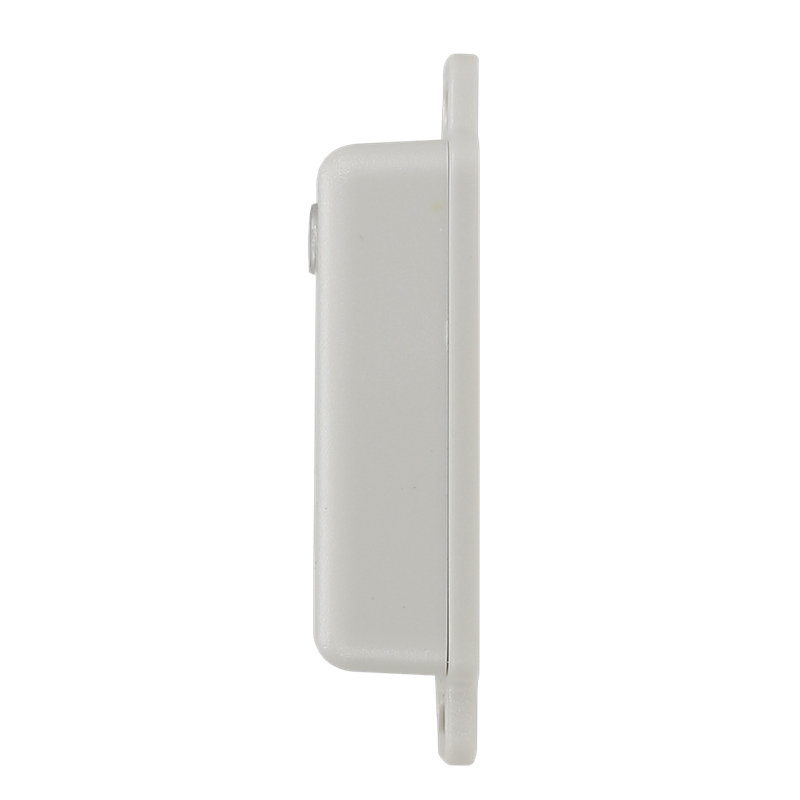

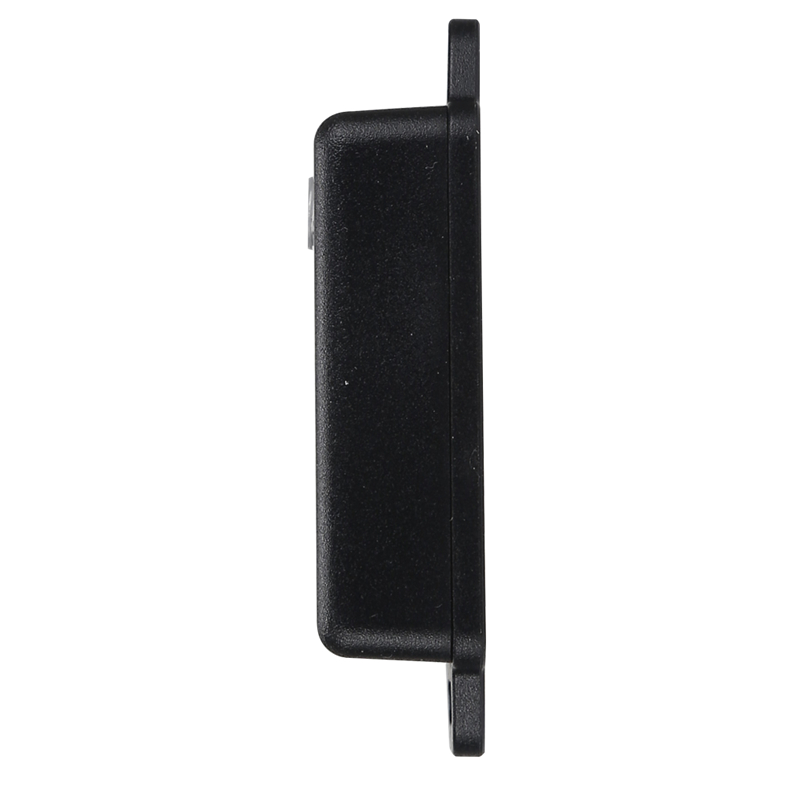

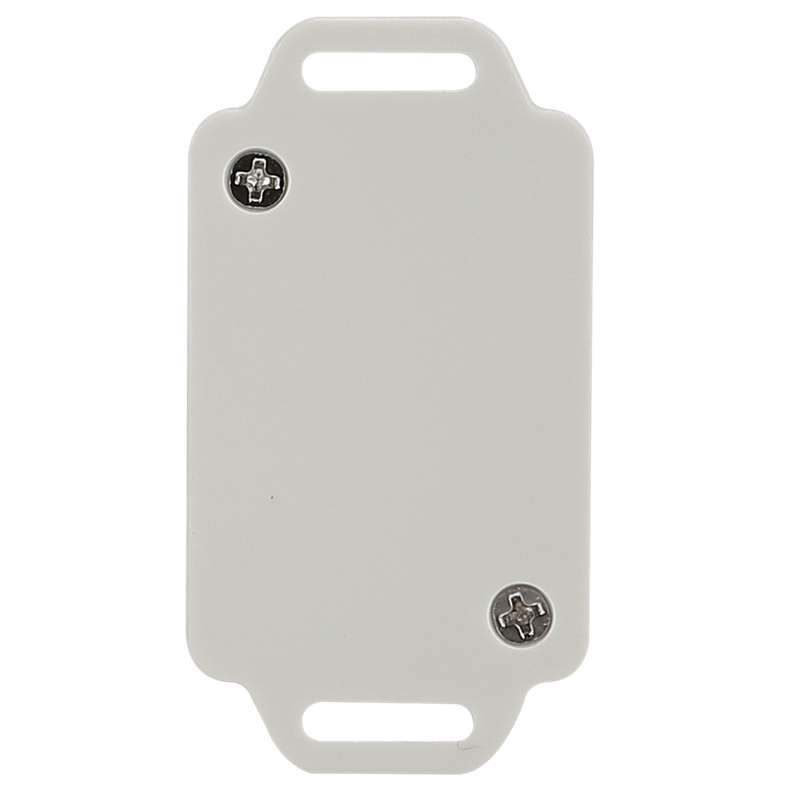

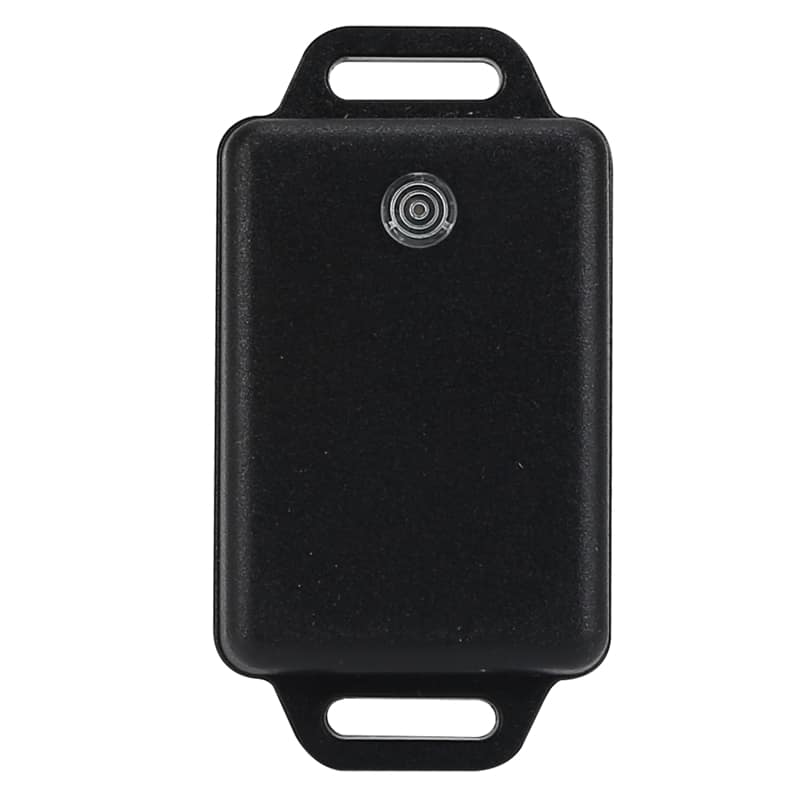

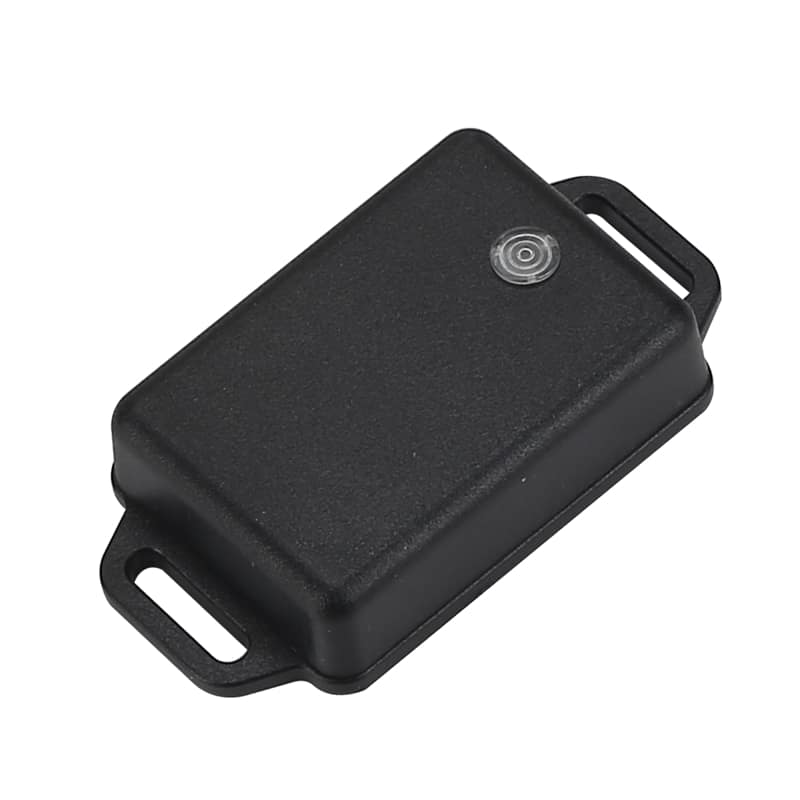

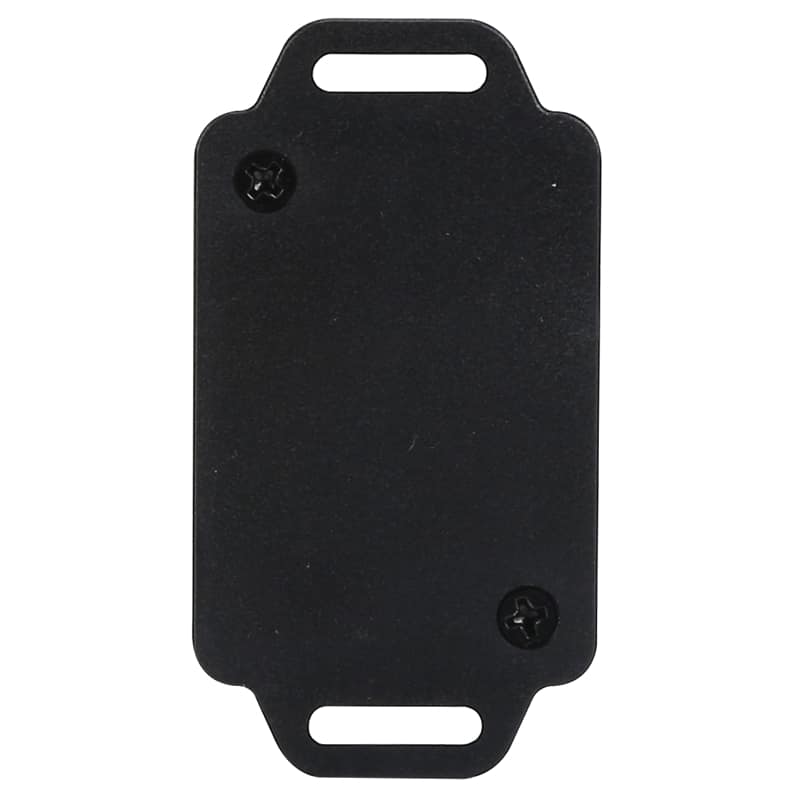

2.4Ghz RFID Luminous Asset Active Tag

Product Introduction:

2.4Ghz luminous label QW-T04 ,with ultra-low power consumption design,longer label service life;effective visual recognition distance of more than 200 meters;with luminous indication;frequency hpping working mode,strong anti-collision and anti-interference ability.

It can be widely used in integrated application scenarios such as enterprise fixed asset management,parking lot management,fire management,warehouse management,etc.

Product Feature:

1.Ultra -low power consumption design,longer service life；

2.The effective visual recognition distance is more than 200 meters；

3.Frequency hopping working mode，stronger anti-collision and anti-interference ability；

4.Light indication；

5.Small and lightweight ，easy to install ，replaceable battery

Priduct Parameter：

RF Parameters：

Working Frequency：2.4~2.5Ghz

Modulation：GFSK

Communication Rate： 1M bits/S

Transmit Power：0-7dBm

Reading Distance：200m

Electrical Parameters:

Battery Type: CR2450

Quiescent Current:<1uA

Transmit Current:<20mA

Service Life:1-3 year

Battery Replacement:Replaceable

Enviroment Parameters:

Working Temp :-20℃~60℃

Storage Temp：-20℃~80℃

Operating Humidity:5%~95%（No Condensation）

IP Grade : IP54

Physical Parameters:

Size(L*W*H):67*36*16mm

Weight :25g

Material : ABS

Color: Black/White
