2.4Ghz RFID Active Keychain Tag QW-T08

Description

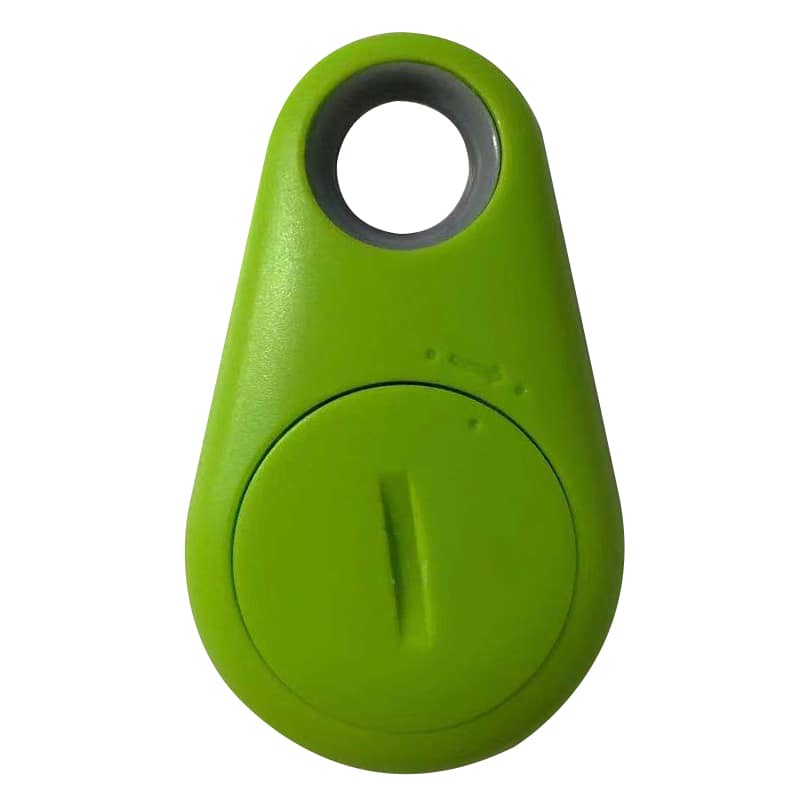

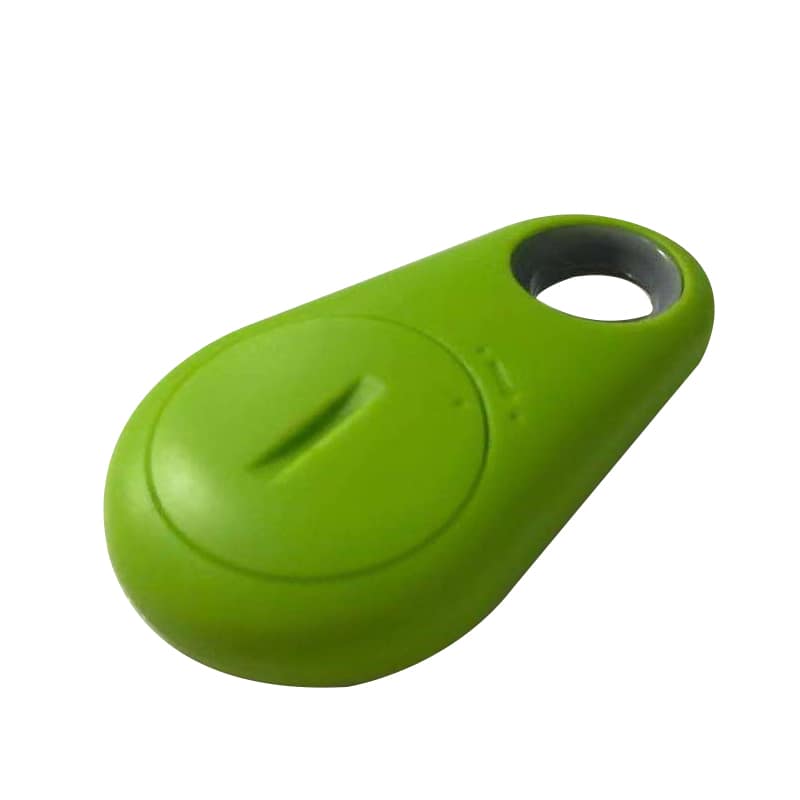

2.4Ghz RFID Active Keychain Tag QW-T08



Product Introduction:

2.4GHz keychain tag QW-T08, with ultra-low power consumption design, longer tag life; Effective visual recognition distance of more than 200 meters; Simple structure, small, lightweight, easy to carry; Frequency hopping working mode, strong anti-collision and anti-interference ability. It can be widely used in personnel management, commodity inventory, cargo sorting, vehicle management, asset management, medical systems, cold chain management, animal management and production process control and other applications.



Product Feature:

  1. Ultra-low power consumption design, longer service life;
  2. The effective visual recognition distance is more than 100 meters;
  3. Frequency hopping working mode, stronger anti-collision and anti-interference ability;
  4. Ultrasonic packaging process, waterproof up to IP54;
  5. Small and lightweight, easy to wear;



Product Parameters:

RF parameters Working Frequency 2.4GHz~2.5GHz Electrical parameters Battery type CR2032
Modulation GFSK Quiescent current <1uA
Communication Rate 1Mbits/S Transmit current <20mA
Transmit power 0~7dBm  service life 1~5 year
Read Distance 200 m Battery Replaceable Repalceable
Environment Parameters Working Temp  20℃ to +60℃ Physical parameters Size (L*W*H) 52*31*11mm
Storage

Temp

– 40℃ to +80℃ Weight 8g
Operating humidity 5% ~ 95%

(No condensation)

Material ABS
IP Grade IP54 Color White/Black/Green
