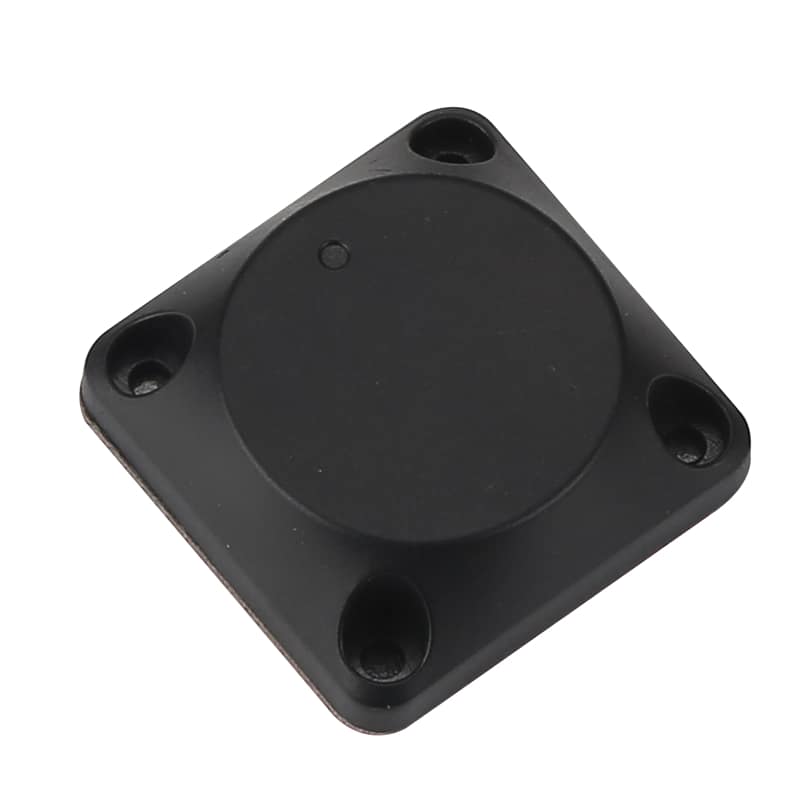

2.4Ghz RFID Active Anti-Tamper Tag QW-T05
Description
2.4Ghz RFID Active Anti-Tamper Tag QW-T05
Product Introduction:
2.4GHz Anti-tamper tag QW-T05, with ultra-low power consumption design, longer service life, effective visual identification distance above 200 m, compact, light, can be fixed by screws, magnet, back and other ways; frequency jump working mode, strong anti-collision and anti-interference ability. It can be widely used in logistics tracking, commodity inventory, goods sorting, vehicle management, asset management, medical system, cold chain management, temperature monitoring, power monitoring, anti-counterfeiting system and production process control and other applications
Product Feature:
- Ultra-low power consumption design, longer service life;
- The effective visual recognition distance is more than 200 meters;
- Frequency hopping working mode, stronger anti-collision and anti-interference ability;
- light indication;
- Small and lightweight, easy to install, replaceable battery
Product Parameters:
| RF parameters | Working Frequency | 2.4GHz～2.5GHz | Electrical parameters | Battery type | CR2450 |
| Modulation | GFSK | Quiescent current | <2uA | ||
| Communication Rate | 1Mbits/S | Transmit current | <20mA | ||
| Transmit power | 0~7dBm | service life | 1~5 year | ||
| Read Distance | ＞200 m | Battery replacement | No Replaceable | ||
| Environment Parameters | Working Temp | – 20℃ to +60℃ | Physical parameters | Size (L*W*H) | 38*38*14mm |
| Storage
Temp |
– 40℃ to +80℃ | Weight | 15g | ||
| Operating humidity | 5% ~ 95%
(No condensation) |
Material | ABS | ||
| IP Grade | IP54 | Color | Black |
