2.4Ghz Active RFID wristband Tag QW-T06
Description

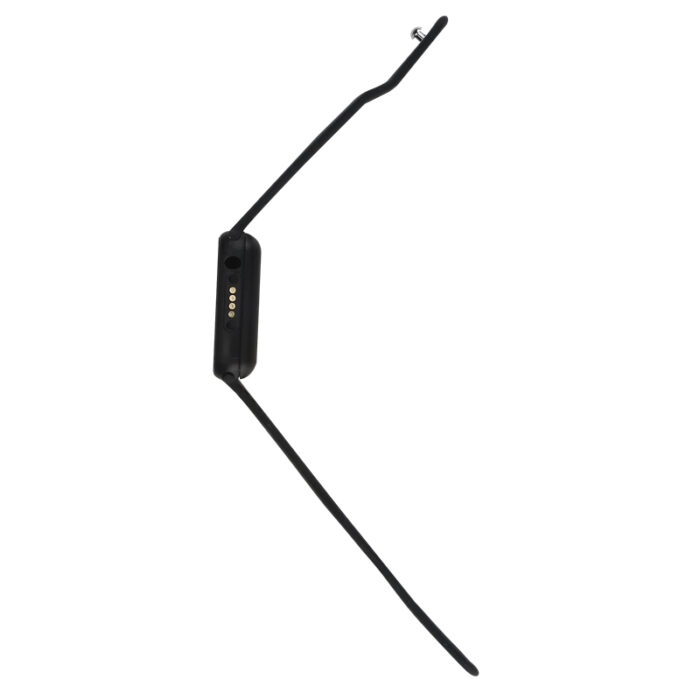

2.4Ghz Active RFID wristband Tag QW-T06
Product Introduction:
2.4GHz wristband tag QW-T06, with ultra-low power consumption design, longer tag life; Effective visual recognition distance of more than 200 meters; The structure is simple, small and lightweight, and can be fixed by screws, magnets, adhesive and other ways; Frequency hopping working mode, strong anti-collision and anti-interference ability. It can be widely used in application scenarios such as personnel management, personnel attendance, medical care management, and prisoner management.
Product Feature:
- Ultra-low power consumption design, longer service life;
- Effective visual recognition distance of more than 200 meters;
- Frequency hopping working mode, stronger anti-collision and anti-interference ability;
- Simple appearance, rich texture, comfortable to wear;
- Waterproof for everyday life
Product Parameters:
| RF parameters | Working Frequency | 2.4GHz～2.5GHz | Electrical parameters | Battery type | CR2450 |
| Modulation | GFSK | Quiescent current | <1uA | ||
| Communication Rate | 1Mbits/S | Transmit current | <20mA | ||
| Transmit power | 0~7dBm | service life | 1~5 year | ||
| Read Distance | ＞200 m | Vibration function | Vibrating motor | ||
| Environment Parameters | Working Temp | – 20℃ to +60℃ | Physical parameters | Size (L*W*H) | 280*40*15mm |
| Storage
Temp |
– 40℃ to +80℃ | Weight | 35g | ||
| Operating humidity | 5% ~ 95%
(No condensation) |
Material | ABS/Silicone | ||
| IP Grade | Waterproof for everyday life | Color | Black |
