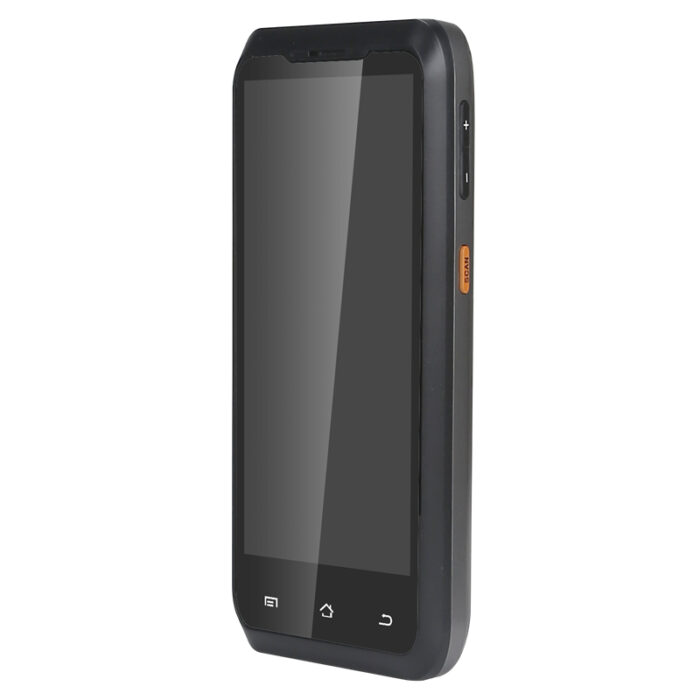

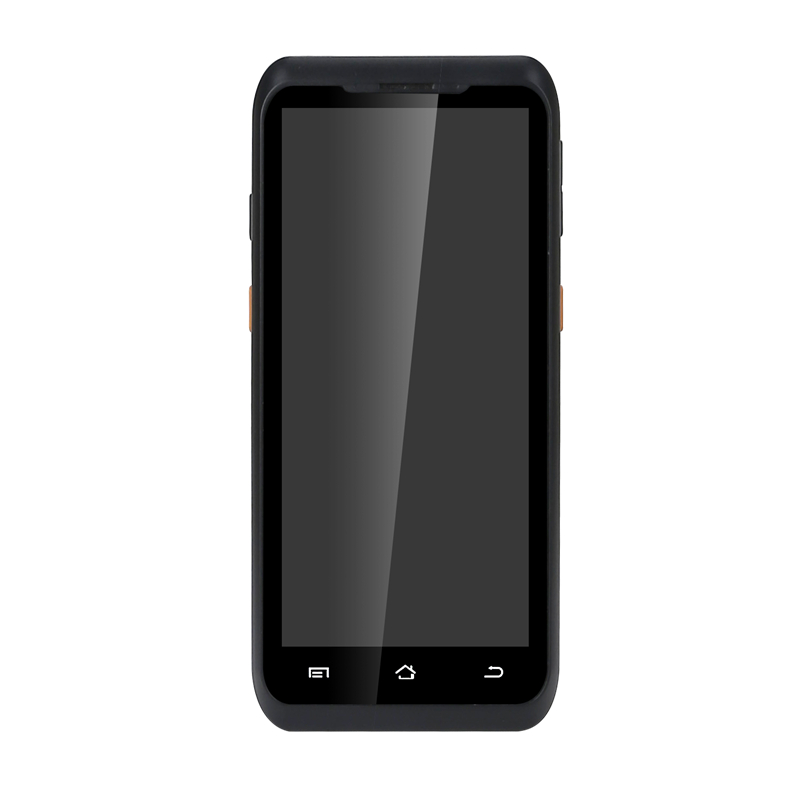

2.4Ghz Active RFID Handheld Reader QW-835
Description
2.4Ghz Active RFID Handheld Reader QW-835
Product introduction:
2.4GHz handheld terminal QW-835, 4G full netcom, can flexibly configure 2.4GHz, 1D/2D, fingerprint recognition, ID card recognition and other functions, fully realize the handheld terminal highly integrated and free optional features, while supporting WiFi, Bluetooth and other wireless communication functions to meet the application needs in complex environments. It can be widely used in logistics tracking, commodity inventory, cargo sorting, vehicle management, personnel management, asset management, medical system, cold chain management, temperature monitoring, power monitoring, anti-counterfeiting system and production process control and other applications.
Product features:
* 2.4G active tag has a long recognition distance, and the effective visual recognition distance is more than 200 meters;
* 4G full Netcom, Android 8.1 system, octa-core 64-bit 2.0GHz high-performance processor, 2GB RAM, 16GB ROM, support multiple tasks to run smoothly;
* 5.5-inch IPS color display, resolution 720*1440, supports multi-touch, the screen can be operated with water or gloves;
* Support GPS, Galileo, Glonass, Beidou; * 4500mAh lithium polymer battery, can work for more than 12 hours after fully charged;
* Rear 1300W pixel high-definition camera, supports auto focus, flash, anti-shake, macro shooting;
* Support one-dimensional barcode, two-dimensional barcode scanning function;
* Support NFC function, support ISO14443A/B, 15693 protocol, read and write distance 2cm-5cm;
* Various modules can be allocated according to customer needs, and some modules provided by customers can be assembled to meet the needs of various industries;
* It can be equipped with fingerprint identification and ID card reading functions according to customer needs to meet the needs of various industries for personnel identification and records;
* Protection class IP66;
Product parameters:
| RF parameters | |
| Working Frequency | 2.4GHz～2.5GHz |
| Modulation | GFSK |
| communication rate | 1Mbits/S |
| Receiver sensitivity | -93dBm |
| Antenna direction | directional |
| Antenna Gain | 3dBi |
| Read Speed | >200m |
| System Performance | |
| CPU | Quad-core 64-bit Coretex-A53 clocked at 1.3GHz |
| Memory | RAM：2GB ROM：16GB |
| Operating System | Andiroid 8.1 |
| Keyboard | Touch screen |
| Display | 5.5 inch HD screen |
| Electrical parameters | |
| Battery capacity | 4500mAh lithium polymer battery |
| Standby time | 320 hours of standby time when wireless communication and other functions are turned off |
| Working time | More than 12 hours (full charge once) |
| Physical parameters | |
| Working Temp | -20℃ to +60℃ |
| Storage Temp | -40℃ to +80℃ |
| Working humidity | 5% ~ 95% (no condensation) |
| Dimensions (R x D) | 170*78*23mm |
| Weight | 0.4kg |
| Material | ABS |
