Description

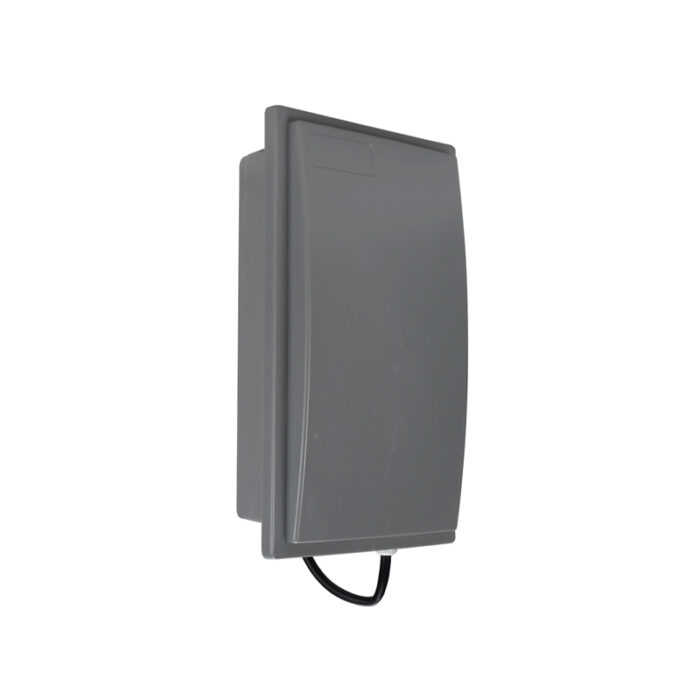

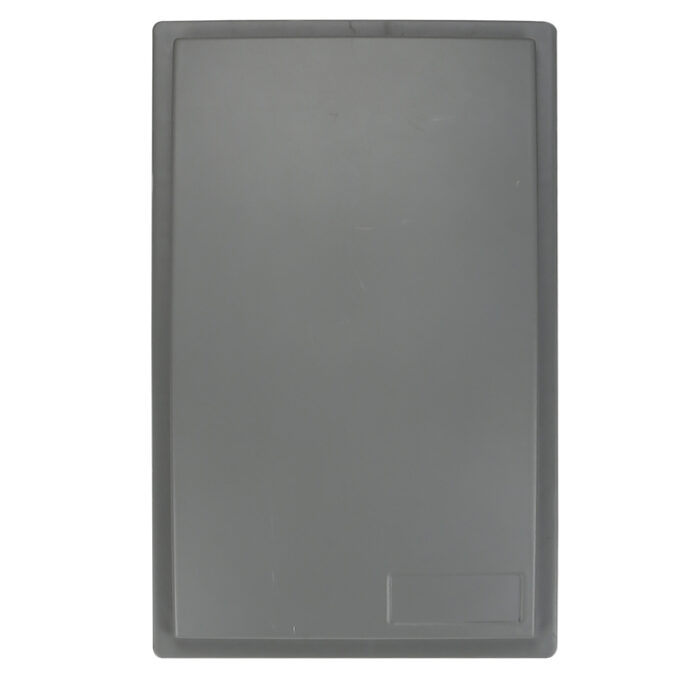

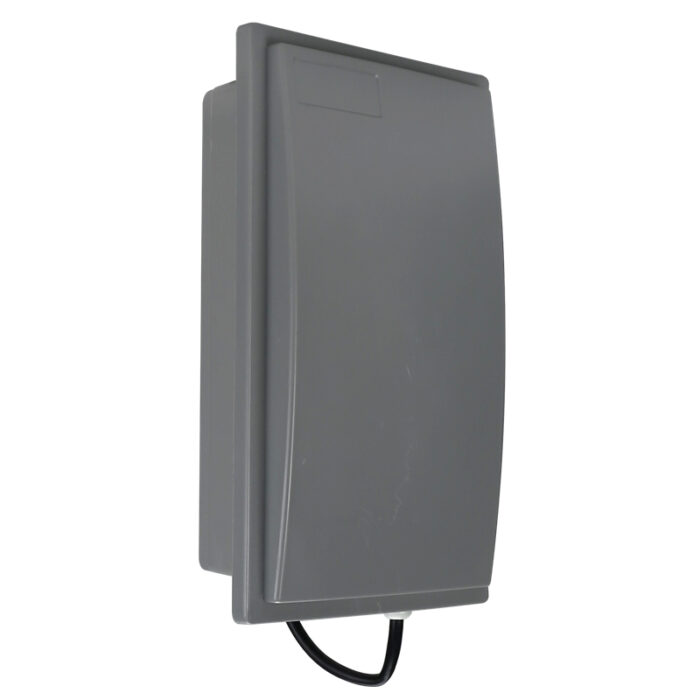

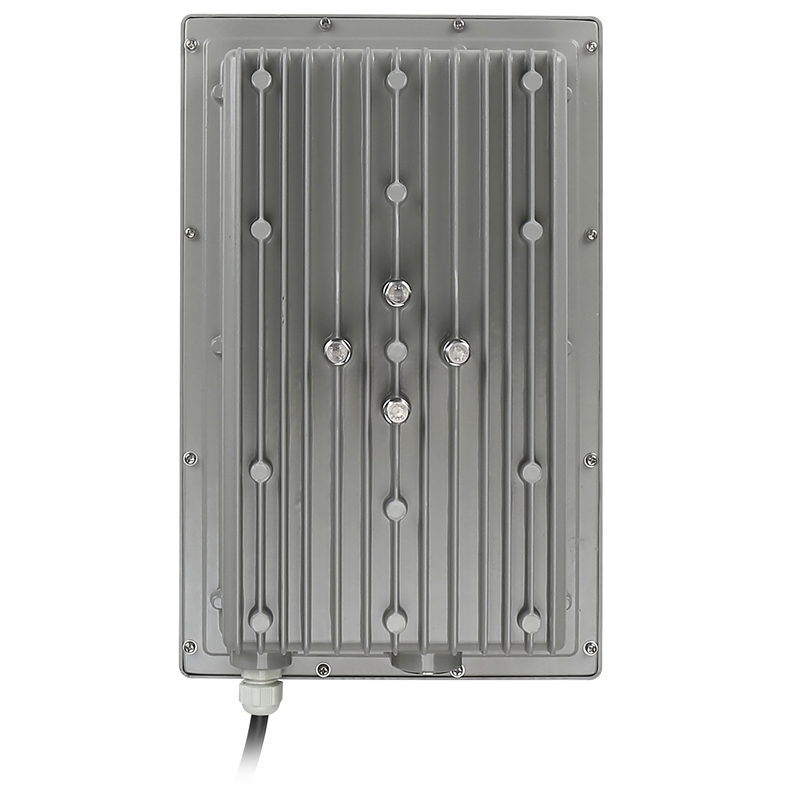

2.4 Ghz directional Outdoor Active Reader QW-204

Product introduction:

2.4GHz directional reader QW-204, the working frequency is 2.45GHz (ISM band), the use of high-end RF SOC chip, integration of advanced defenseCollision algorithm, with strong anti-interference, no manual participation; With automatic identification, tracking, regional positioning, collection and other functions. 2.4GHz directional reader QW-204 is very suitable for outdoor application environment, can be widely used in logistics tracking, commodity inventory, cargo sorting, vehicle pipeManagement, personnel management, asset management, medical system, cold chain management, power monitoring and production process control and other applications

Product features:

1. The label recognition distance is long, and the effective visibility is more than 200 meters;
2. Multi -label recognition ability is strong, up to 200 cases/second;
3. Up to 2,000 label data cache capacity, data loss is not lost;
4. The wired data interface is rich, supporting 10M/100M adaptive network port, RS232, RS485, weigand;
5. Wireless data interface supports 4G, wifi data transmission;
6. Wide -voltage supply, DC 9V ~ 18V;
7. Support commands, automatic, trigger card reading and other online and offline working modes;
8. The appearance is small and beautiful, and the installation is convenient;
9. Provide demonstration software and SDK development package;
10. Support serial port and mesh upgrade;

Product parameters:
